10 - 100 HP
10 - 100 HP
Technical Data
| Model | Pressure (Bar) | HP | KW | Capacity (CFM) | Noise (dB +2) | Weight (kg) | Connection (Inch) | Dimensions (L x W x H mm) |
|---|---|---|---|---|---|---|---|---|
| CPMV 10 PM | 7 - 10 | 10 | 7.5 | 7 - 41 | 73 | 205 | 3/4" | 850 x 750 x 1000 |
| CPMV 15 PM | 7 - 10 | 15 | 11 | 10 - 61 | 73 | 205 | 3/4" | 850 x 750 x 1000 |
| CPMV 20 PM | 7 - 10 | 20 | 15 | 17 - 73 | 73 | 205 | 3/4" | 850 x 750 x 1000 |
| CPMV 25 PM | 7 - 10 | 25 | 18.5 | 21 - 114 | 73 | 280 | 1" | 950 x 850 x 1080 |
| CPMV 30 PM | 7 - 10 | 30 | 22 | 26 - 130 | 73 | 290 | 1" | 950 X 850 X 1080 |
| CPMV 40 PM | 7 - 10 | 40 | 30 | 49 - 187 | 76 | 362 | 1 1/2" | 1130 x 950 x 1200 |
| CPMV 50 PM | 7 - 10 | 50 | 37 | 65 - 226 | 77 | 416 | 1 1/2" | 1130 X 950 X 1200 |
| CPMV 60 PM | 7 - 10 | 60 | 45 | 62 - 301 | 72 | 866 | G1 1/2 | 1723 x 980 x 1600 |
| CPMV 75 PM | 7 - 10 | 75 | 55 | 65 - 389 | 76 | 1221 | G2 | 1950 x 1090 x 1600 |
| CPMV 100 PM | 7 - 10 | 100 | 75 | 95 - 463 | 77 | 1285 | G2 | 1950 x 1090 x 1600 |

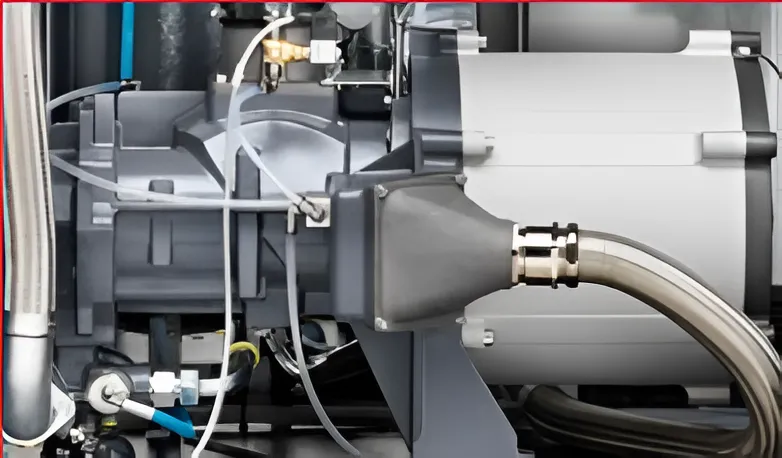

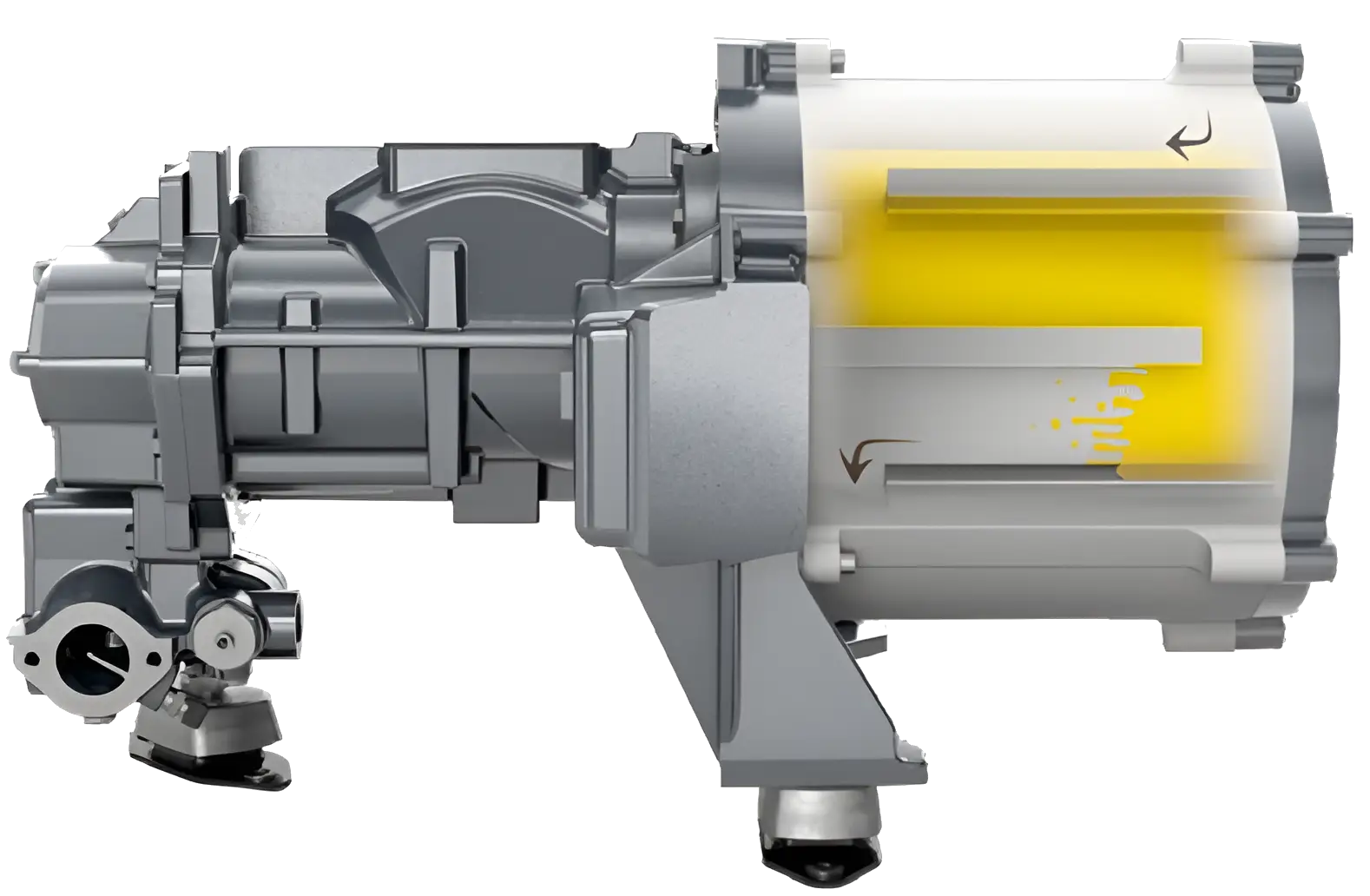

Oil Cooled iPM motor (Interior Permanent Magnet)
In-House Designed iPM motor
- IE4 Super Premium Efficiency (96% – 97%)
- Direct drive configuration for enhanced savings
- Latest IP Protection class
- Proven oil-cooled design
- Horizontal configuration for easy maintenance
- 100% ’In-House’ design
IE4 Super Premium Efficiency iPM motor
Up to 5% energy savings vs. IE2 / IE3 induction motor in CPMV
Product features
In-House Designed iPM motor
- In-House’ latest design for optimized flow rates
- Oil cooled drive train for durable & stable commissioning usage
- Direct Drive Configuration for excellent power transmission
- Wide Range in Pressure Band for better control

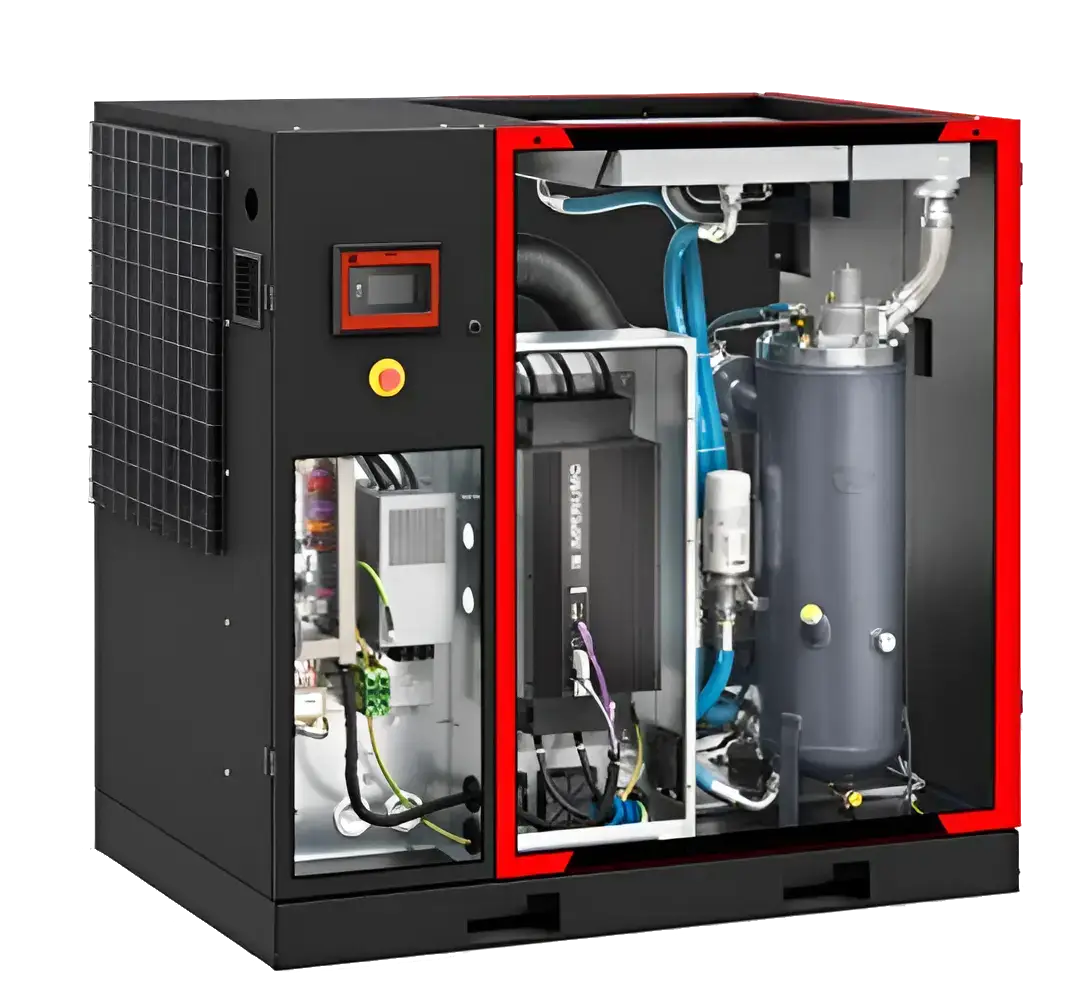

Usage Friendly Design
- Compact layout saving installation space

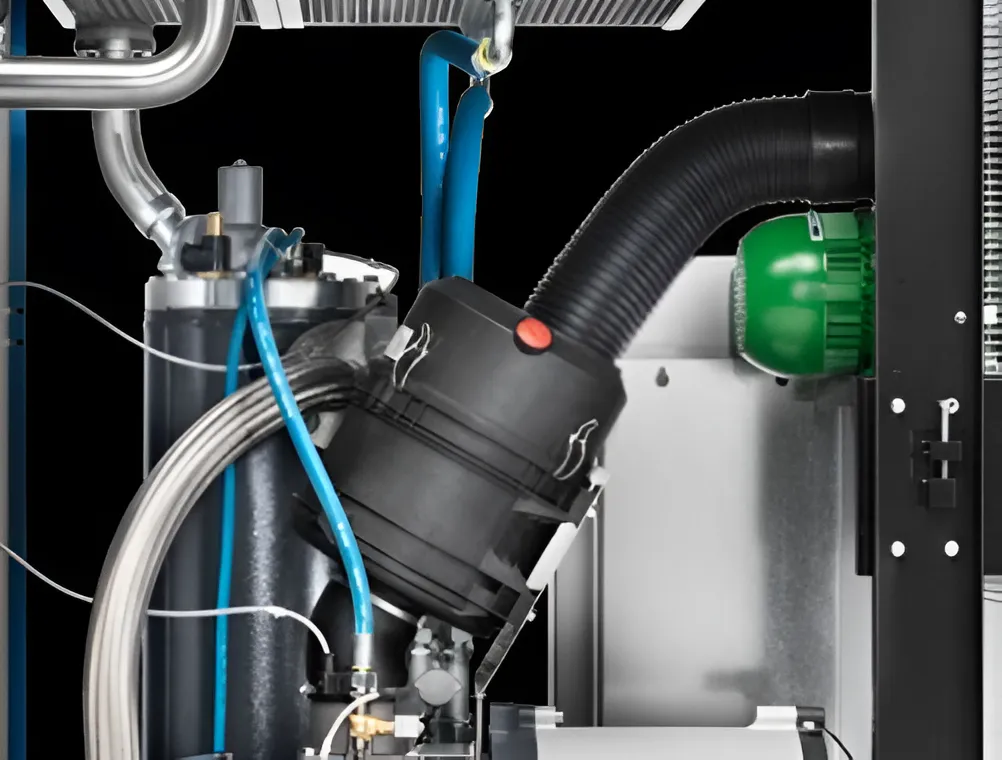

- Pre-filtration
- Quick access for regular service
- Easy to clean on cooler
- Intelligent Controller
- Smart Touch Controller with RS 485
- Port for Modbus Connectivity
Performance
- Design for Maximum Energy Savings
- Minimum transmission loss
- Best-in-Class inverter with integrated control
- High technology iPM motor for premium performance

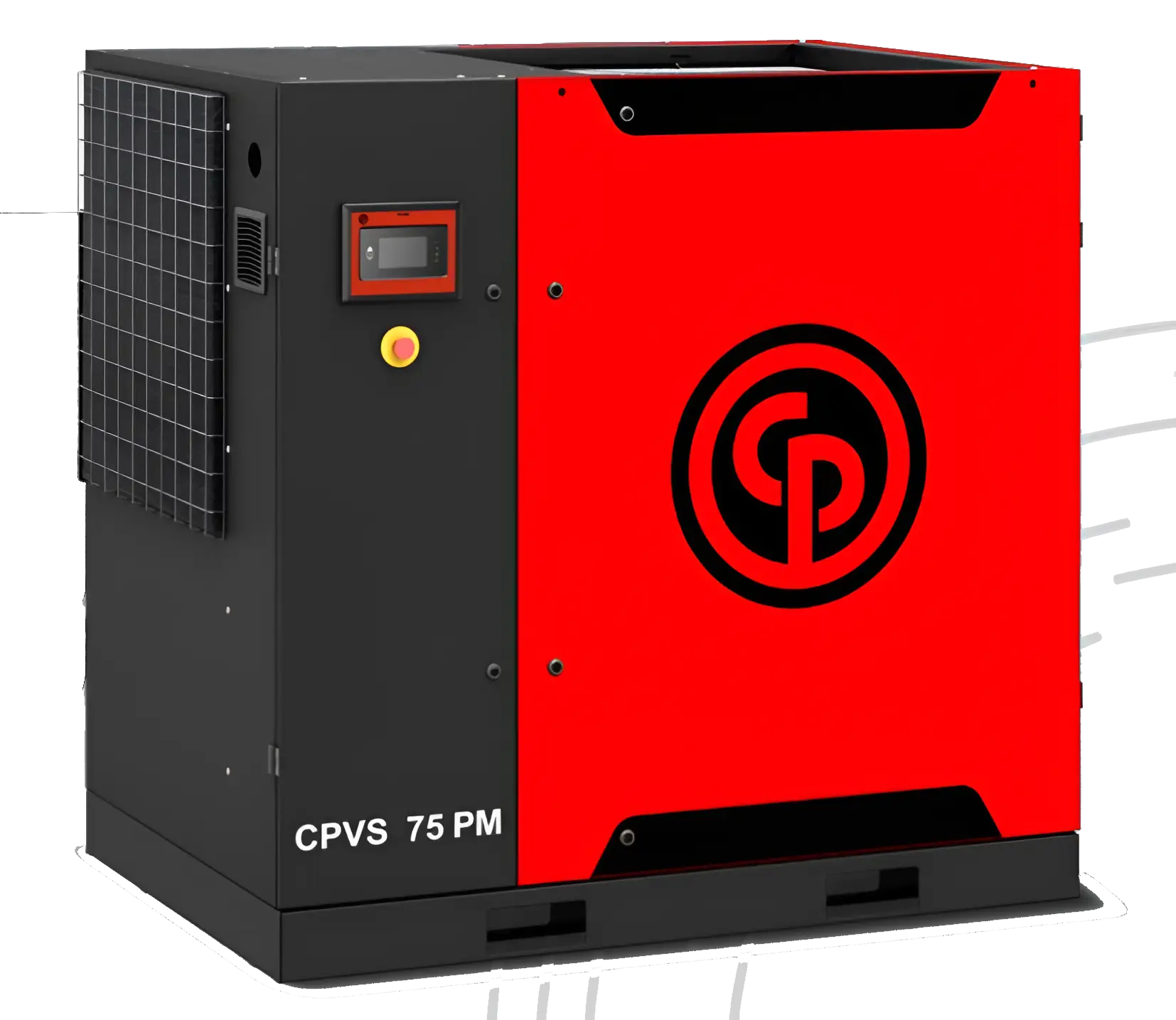

CPMV & CPVS iPM (10-100 HP)
