CPVS
CPVS
Technical Data
| Model | HP | Capacity CFM | dB(A) | End Connection | Weight (KG) | L × W × H (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| 7 Bar | 8 Bar | 10 Bar | 13 Bar | ||||||
| CPVS 40 | 40 | 82 - 199 | 82 - 181 | 82 - 181 | 67 - 144 | 73 | 1 ½” | 885 | 1680 × 955 × 1505 |
| CPVS 50 | 50 | 101 - 238 | 101 - 221 | 101 - 121 | 82 - 165 | 73 | 1 ½” | 905 | 1680 × 955 × 1505 |
| CPVS 60 | 60 | 122 - 288 | 122 - 266 | 122 - 266 | 102 - 208 | 75 | 2” | 935 | 1680 × 955 × 1505 |
| CPVS 75 | 75 | 145 - 350 | 144 - 328 | 144 - 328 | 121 - 255 | 75 | 2” | 1230 | 1850 × 1060 × 1635 |
| CPVS 100 | 100 | 187 - 506 | 160 - 441 | 157 - 438 | 126 - 368 | 75 | 2” | 1640 | 2260 × 1060 × 1595 |
| CPVS 120 | 120 | 197 - 565 | 191 - 564 | 151 - 503 | 151 - 411 | 75 | 2” | 1650 | 2260 × 1060 × 1595 |
| CPVS 121* | 120 | 187 - 625 | 197 - 598 | 154 - 513 | 127 - 424 | 77 | G 2 | 3240 | 2845 × 1750 × 1960 |
Inverter Driven Compressors to Protect your Efficiency

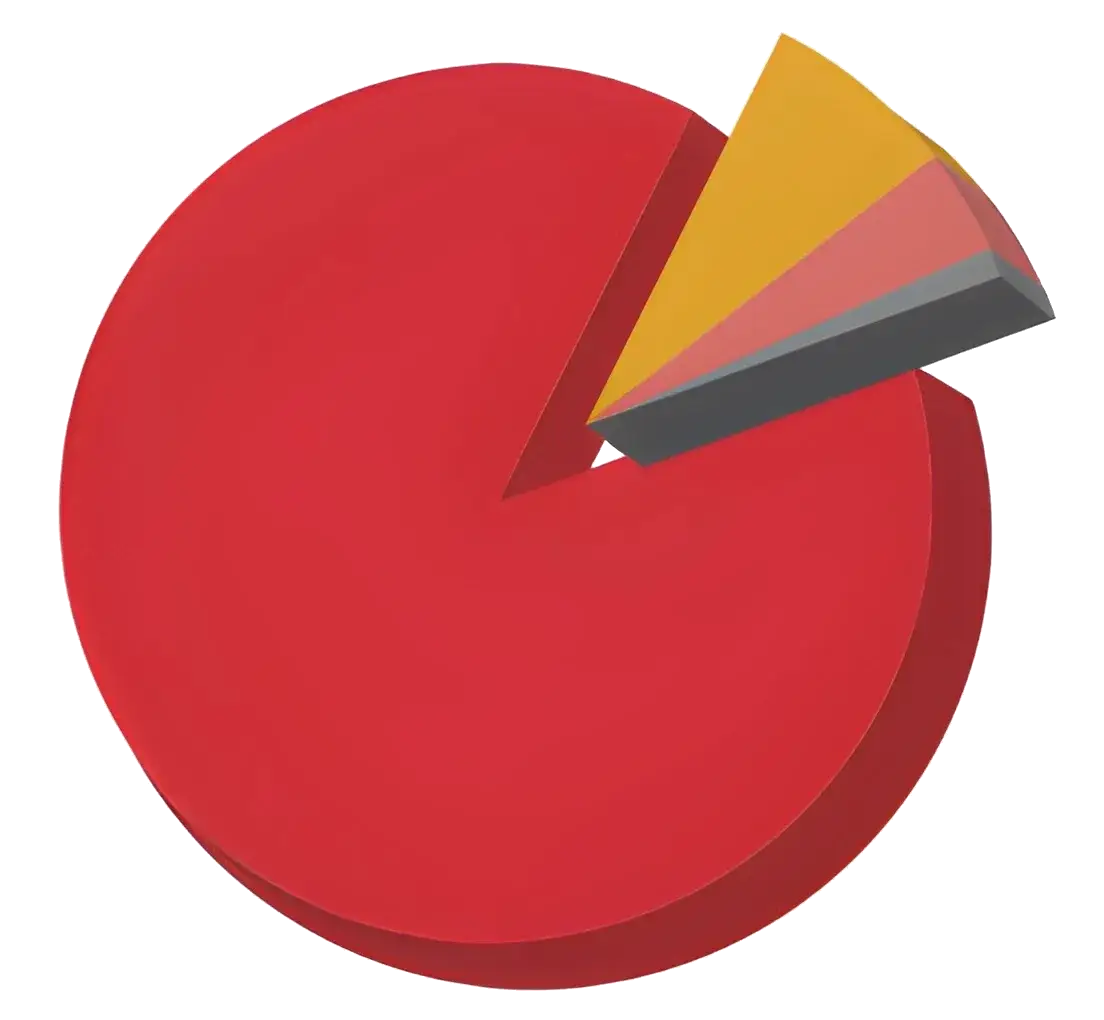

Fixed Speed
Installation 1%
Maintenance 4%
Investment 7%
Electrical Consumption 88%

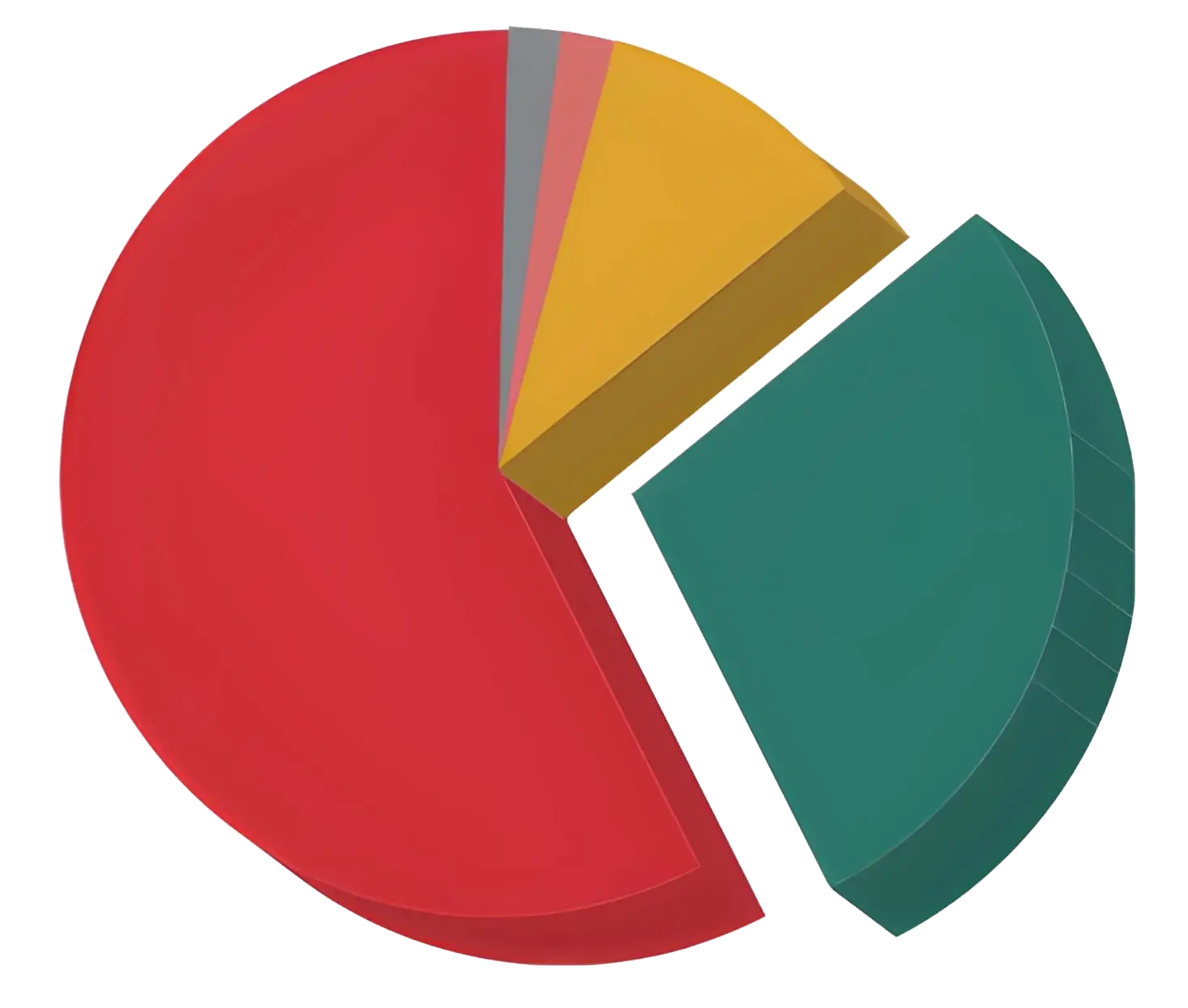

IVR
Installation 2%
Maintenance 2%
Investment 9%
Electrical Consumption 57%
Savings 30%
Energy Audit:
An IVR compressor potentially offers up to 30% energy savings, with an ROI less than 18 months.

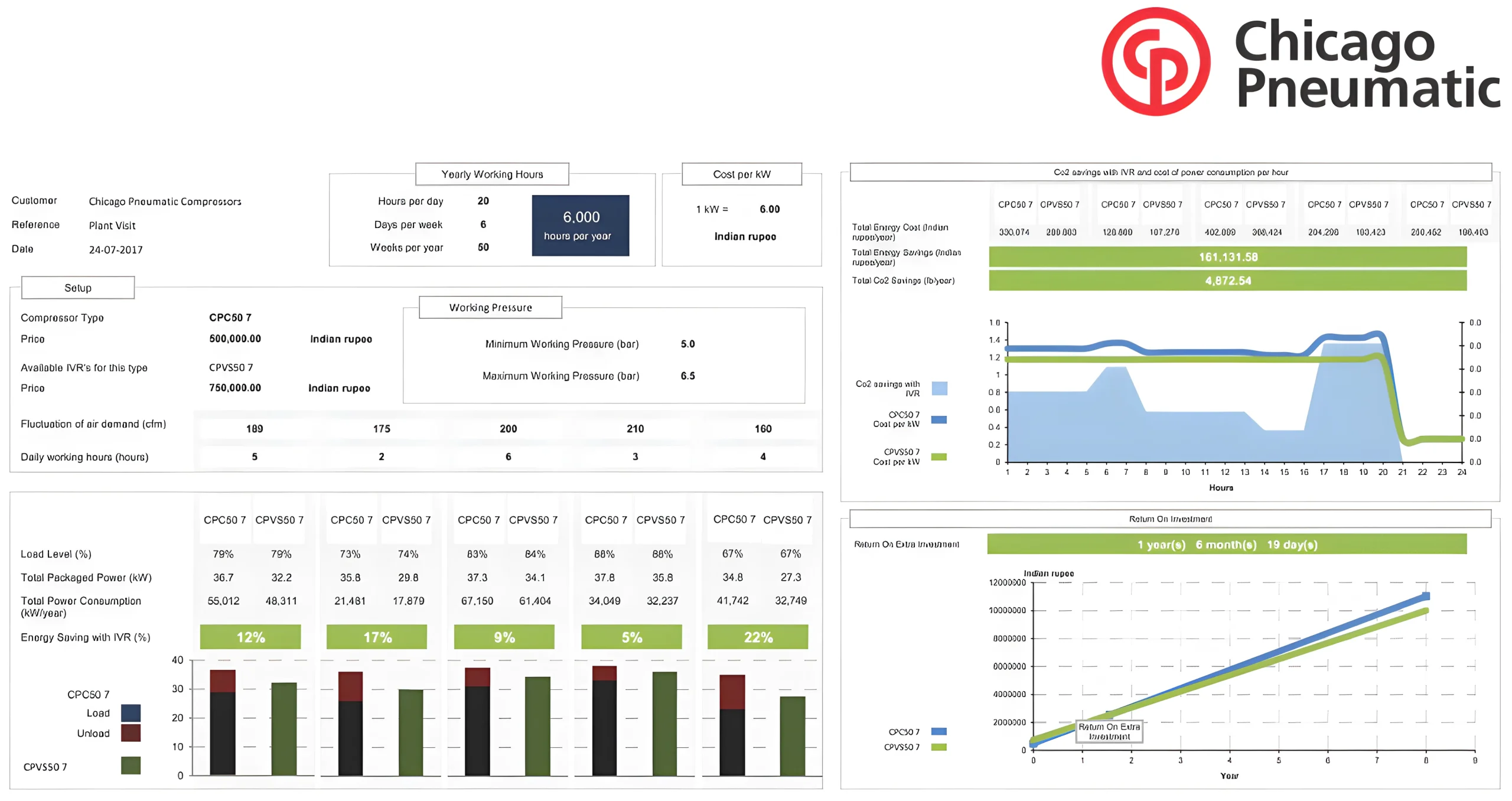

Chicago Pneumatic has developed the Energy cutter, a tool that calculates yearly savings from an IVR compressor.
We offer energy audits, specialized advice to make sure you make the right decision when buying your compressor.

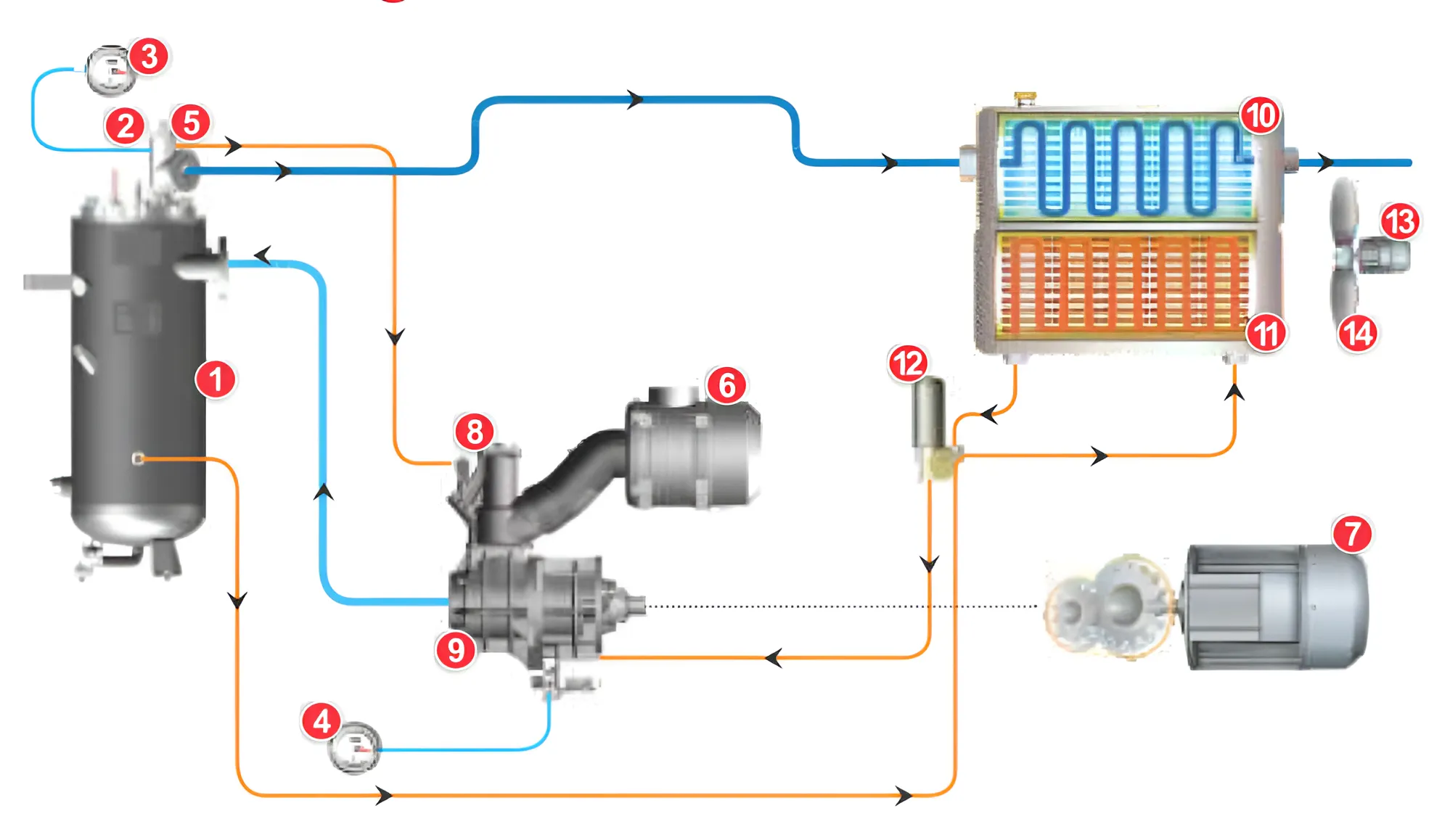

Flow Diagram:
An IVR compressor potentially offers up to 30% energy savings, with an ROI less than 18 months.
Chicago Pneumatic has developed the Energy cutter, a tool that calculates yearly savings from an IVR compressor.
We offer energy audits, specialized advice to make sure you make the right decision when buying your compressor.
Define your needs, our broad offer does the rest
| Category | Icon | Details |
|---|---|---|
| Noise level |  | Silent: 72-74 dB(A) |
| Capacity |  | 82-625 CFM |
| Power |  | 150-240 hp |
| Pressure |  | 7.5 - 12.5 bar (g) |
User Benifits
- Save electricity over 30%
- Optimal efficiency perfectly matching the air flow
- Quick return on investment
- ES 4000 Touch controller
- Environment friendly – reduced CO2 emissions.

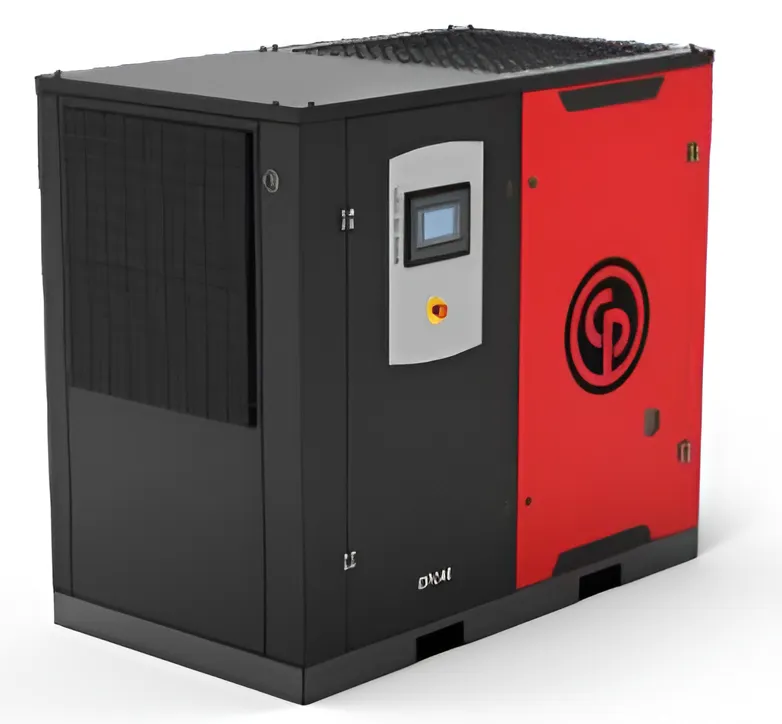

CPVS
- Top value through energy efficiency
- Inverter Driven
