Edwards Vacuum Pumps
Offering you a complete choice of products which include edwards – nxds dry scroll pump, edwards vacuum pump and edwards xdd1 diaphragm pump.
Key Benefits:
✔ Achieve high ultimate vacuum levels for accurate and precise applications
✔ Energy-efficient design lowers operational costs and boosts overall efficiency
✔ Advanced technology ensures stable, quiet operation for a smoother workflow
✔ Proven to perform reliably in even the most challenging industrial conditions
Whether you’re in the pharmaceutical, chemical, or research sector, Edwards vacuum pumps offer the reliability and performance needed to enhance process efficiency while minimising downtime. Their advanced technology and energy-saving features make them a cost-effective choice for businesses looking to improve both productivity and operational expenses.
Product Details

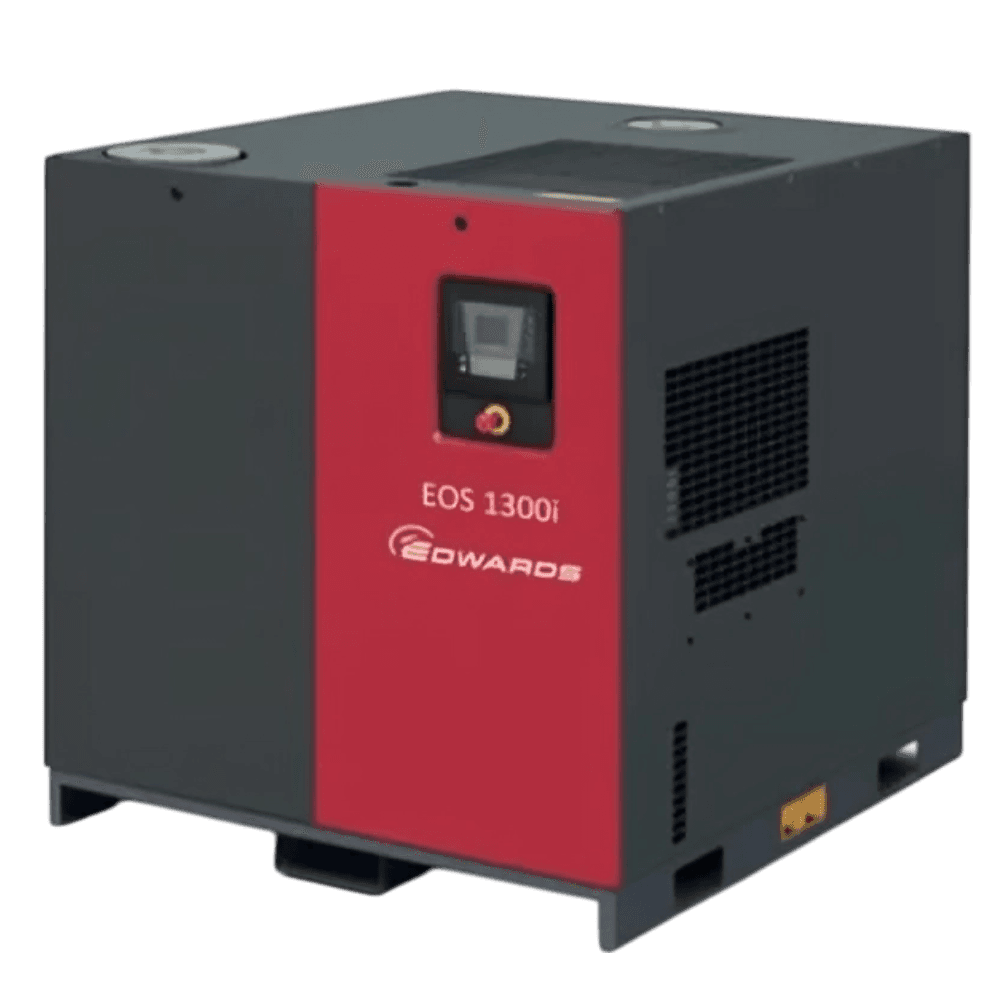

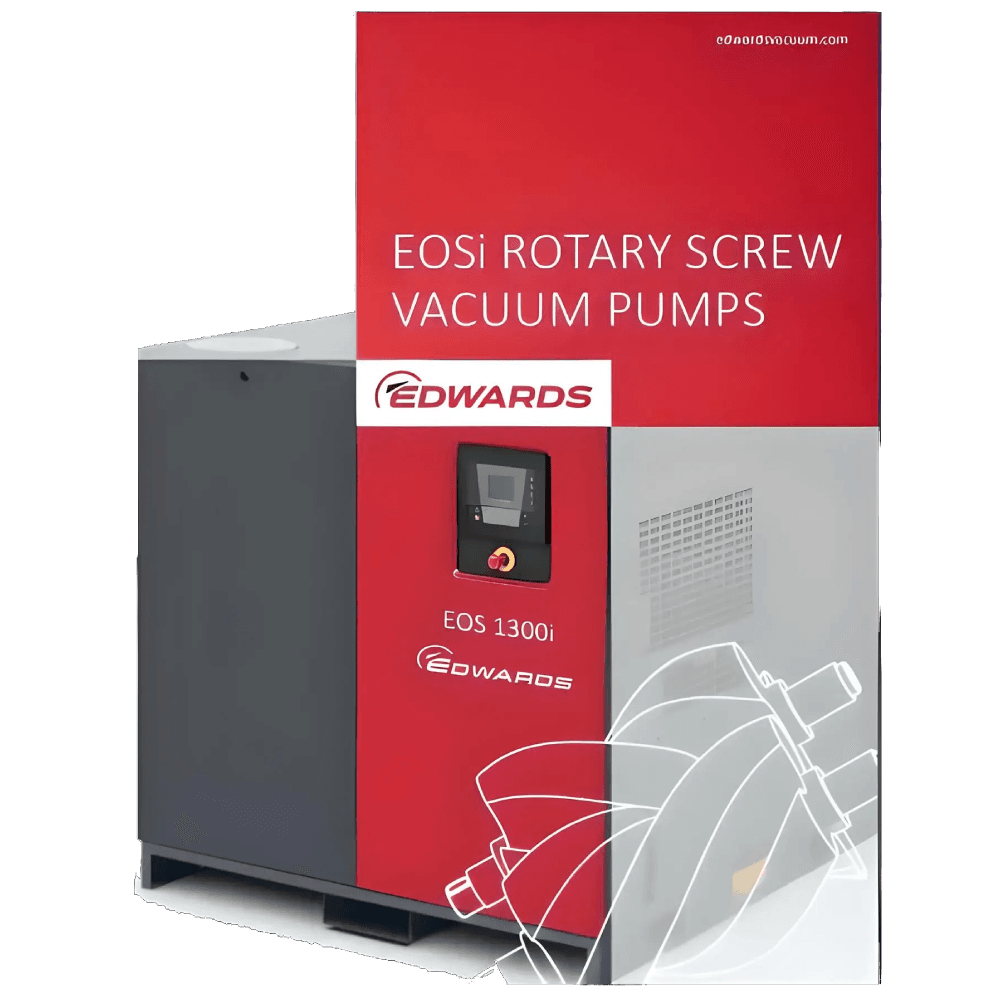

| Model Name/Number | EOS 1300i |
| Brand | Edwards |
| Number Of Stages | Single stage |
| Usage/Application | Industrial |
| Phase | 1 Phase |
| Material | Cast Iron |
| Weight | 1058 kg |
| Automation Grade | Semi-Automatic |
| Dimension | 1420 x 1590 x 1470 mm |
| Shaft Power | 22 kW |
| Approx.Price | Rs 10 Lakh / Piece |

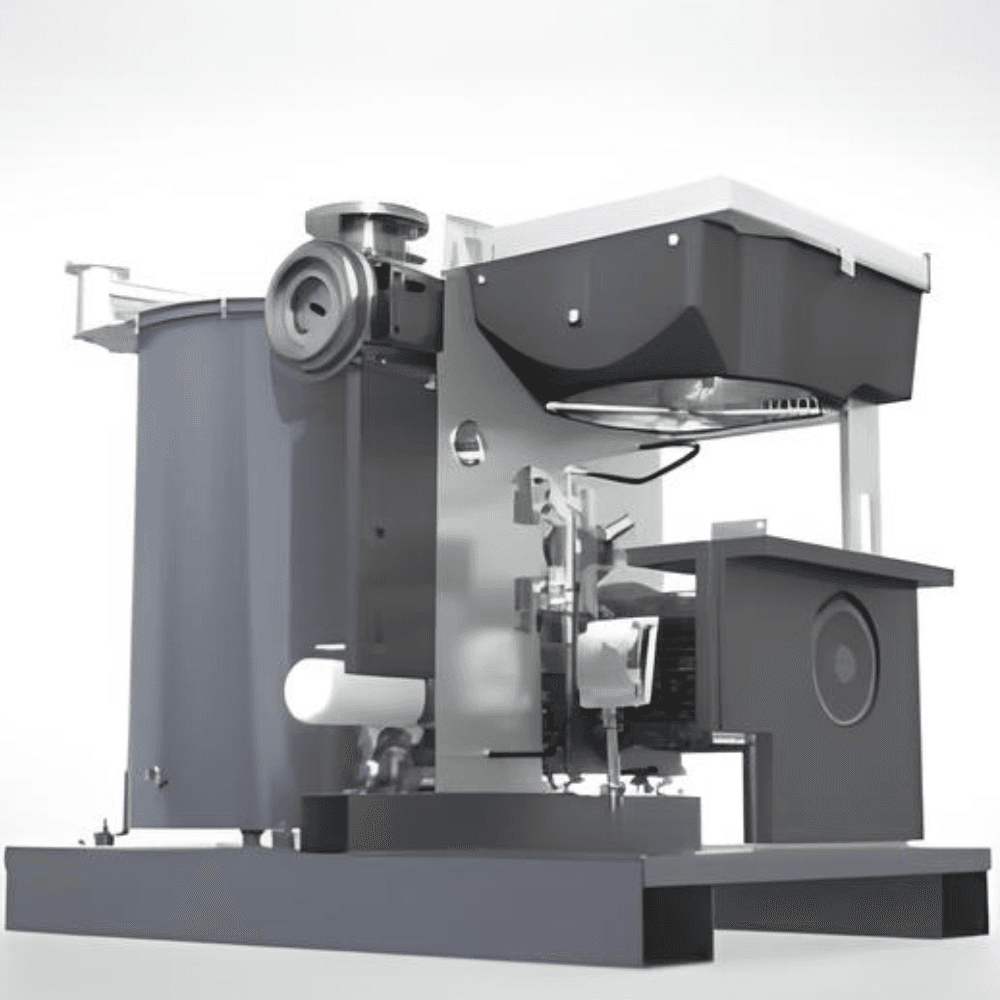

Edwards Vacuum Pump
Edwards believes in delivering results that bring value to our customers by using our breadth of industry experience to identify and apply solutions to your problems. Using the most innovative and up-to-date modelling techniques, we can optimise the pumping configuration for customers to provide a system design giving the maximum performance in the most reliable and cost-effective way.
- Highly efficient oil-sealed rotary screw
- Outstanding performance
- Robust design
- Element life is significantly longer than screw compressors and vane pumps
- Provides modulating vacuum control in conjunction with the VSD drive to minimize energy consumption
- Optimum design for maximum oil retention
- Longer life because of managed performance means the vacuum pump never overloads the separators
- Innovative and patented design retains oil at <3 mg/m3 even when under the greatest load.
- In conventional fixed speed vacuum pumps overloaded oil separators lead to oil carryover

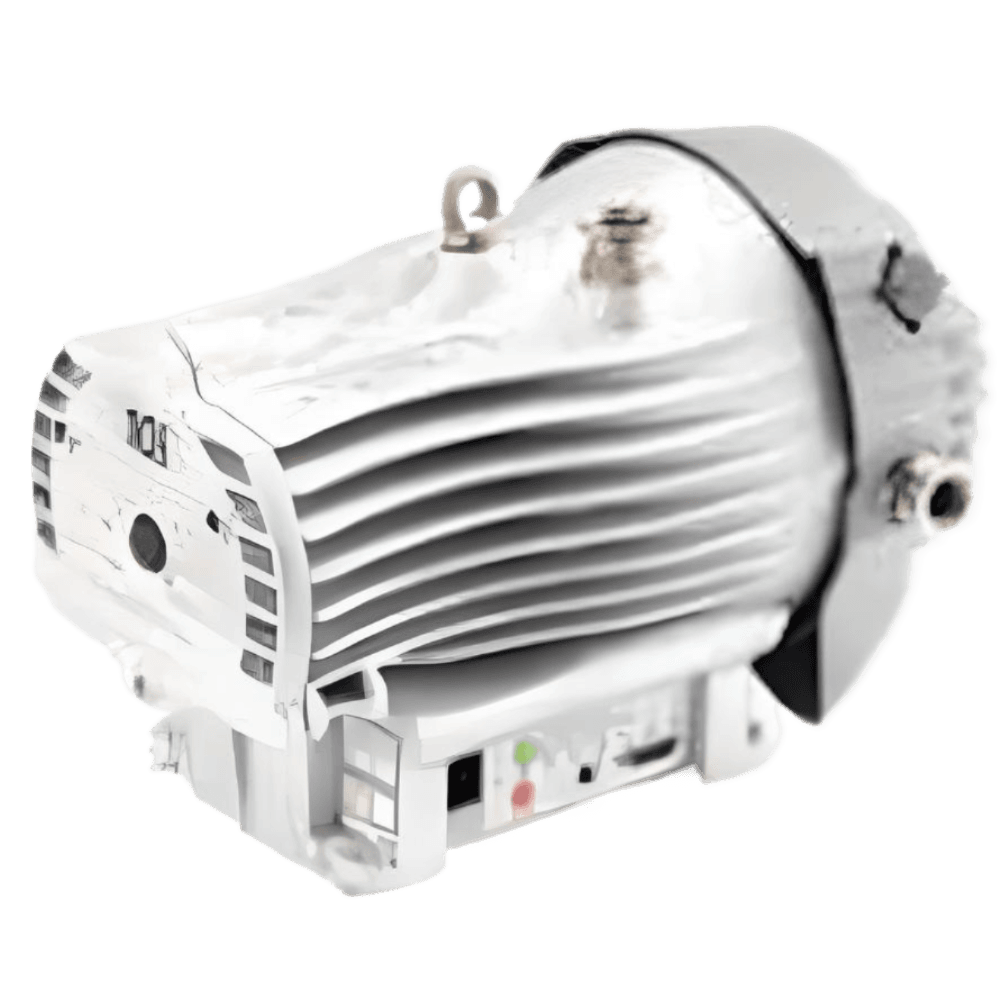

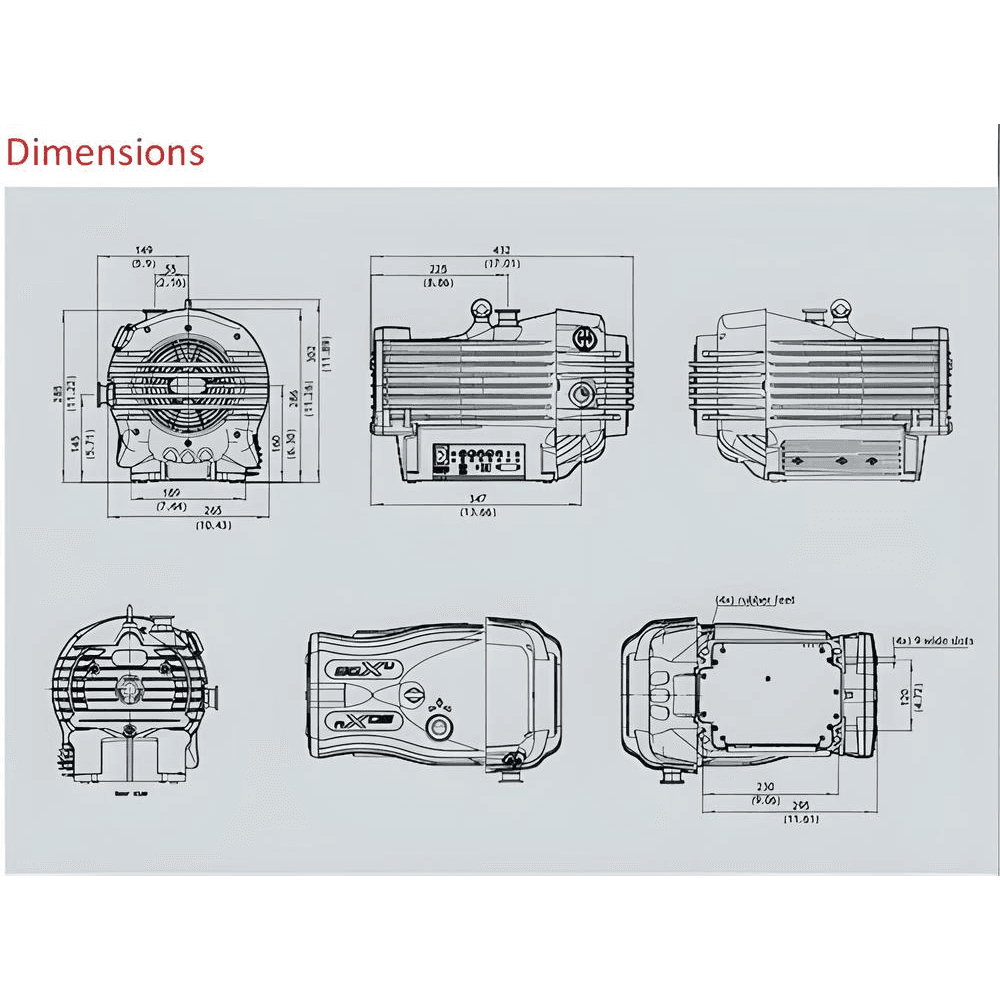

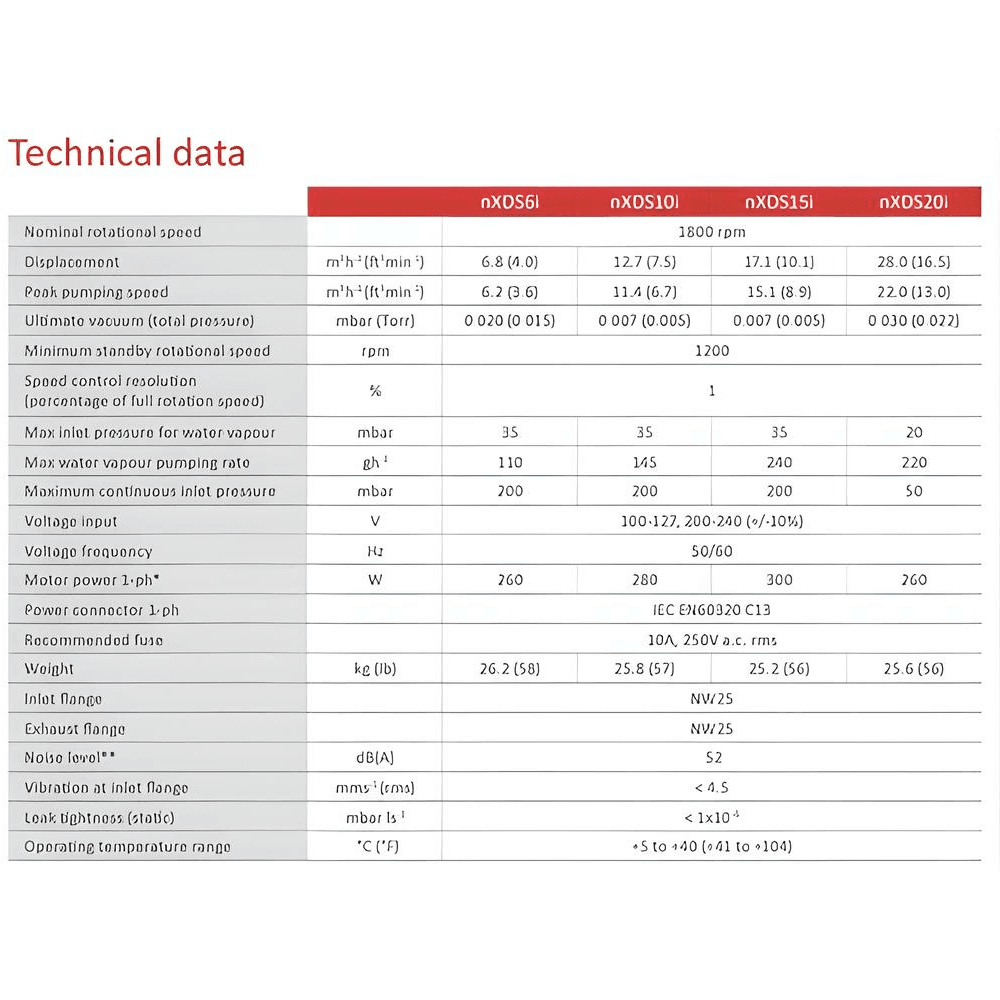

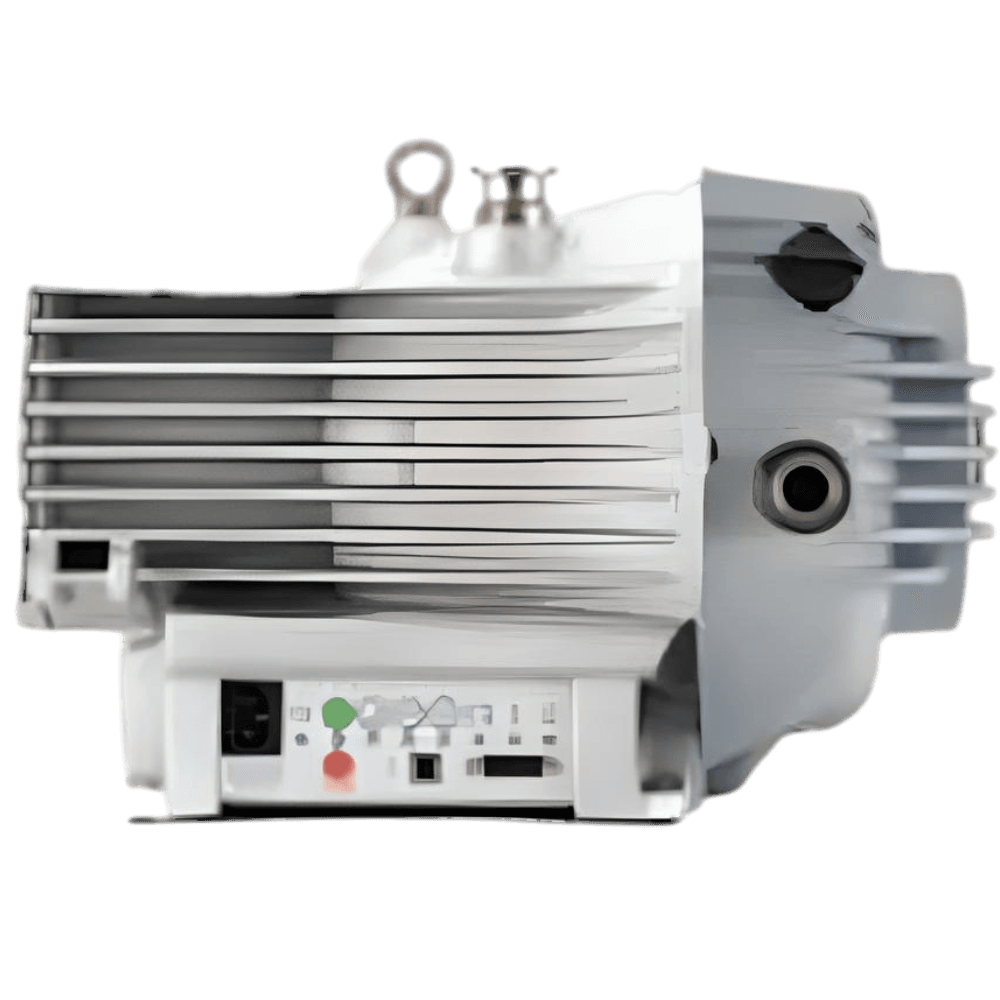

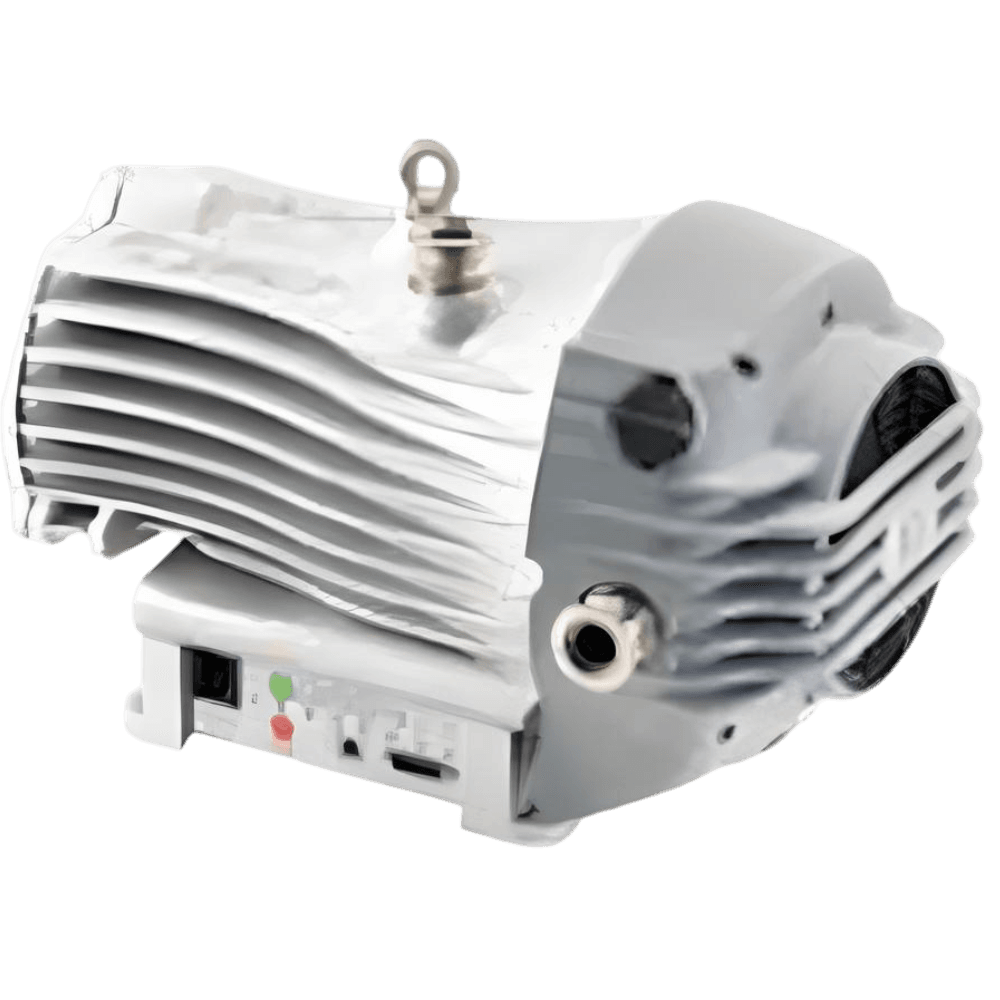

nXDS is our latest generation of scroll pump offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise levels than other pumps. nXDS pumps are designed to be completely field serviceable. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies.
Product Details
| Type | Dry Scroll Pumps |
| Brand | EDWARDS |
| Number Of Stages | Single stage |
| Max Flow Rate | 25 |
| Power | 520W |
| Usage/Application | Industrial |
| Approx.Price | Rs 3 Lakh / Piece |
Product Details

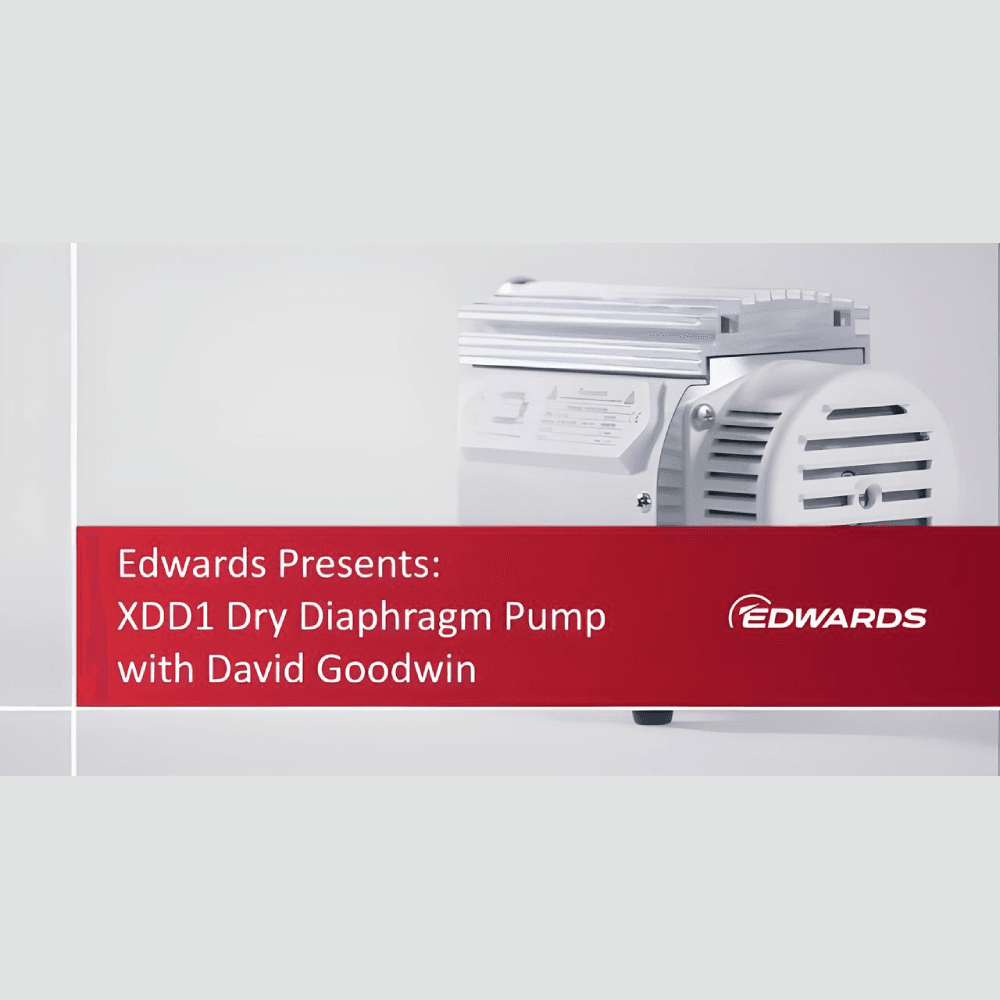

| Model Name/Number | XDD1 DIAPHRAGM VACUUM PUMP |
| Pump Type | DIAPHRAGM VACUUM PUMP |
| Brand | EDWARDS |
| Max Flow Rate | 0.6 m3h-1 |
| Phase | Single Phase |
| Color | Black |
| Approx.Price | Rs 1.65 Lakh / Piece |

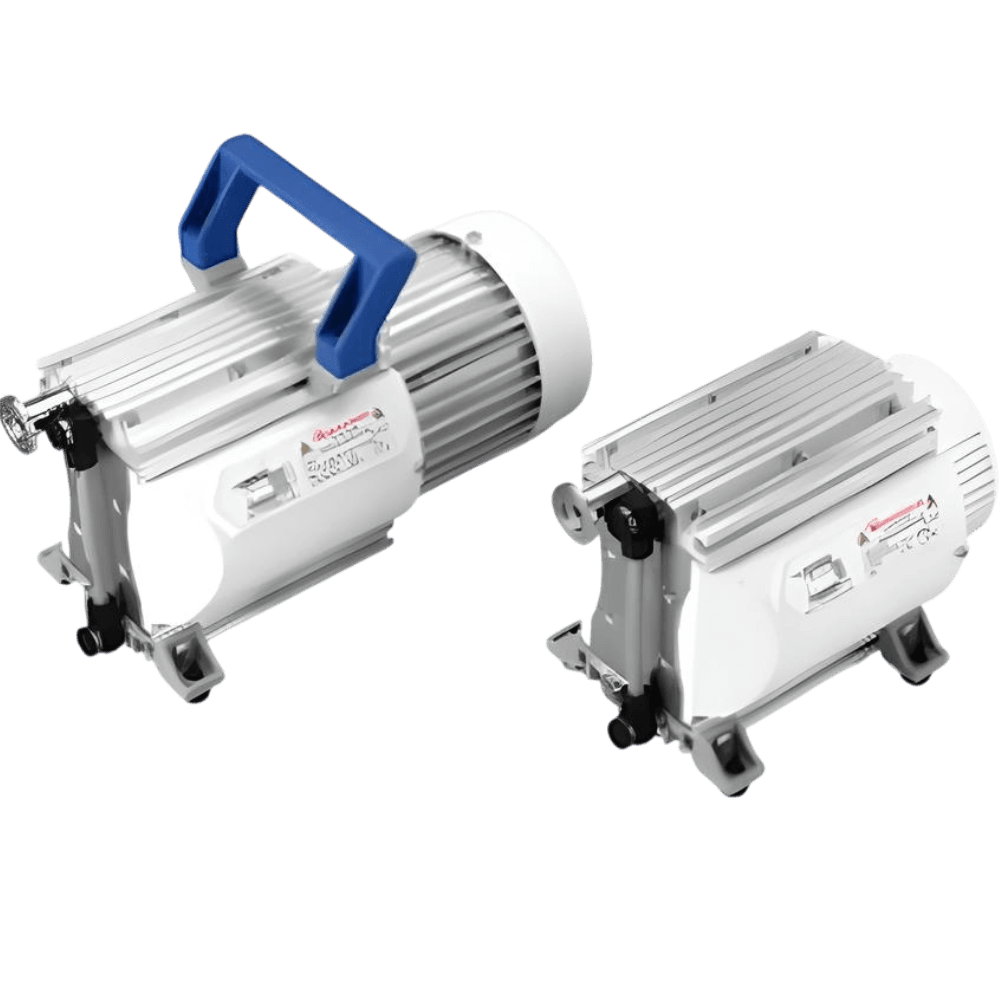

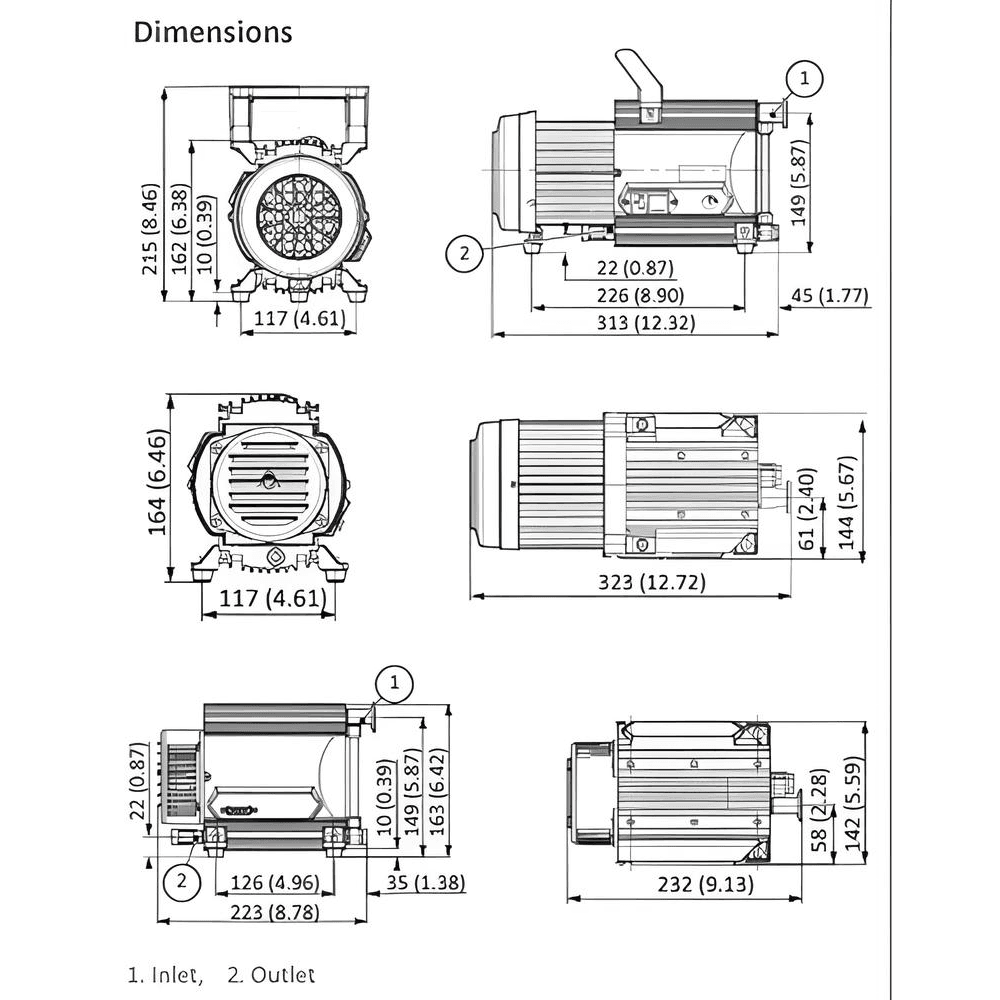

XDD1 diaphragm pumps are compact and efficient pumps used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD1 to back a 70 ls-1 turbomolecular pump.
Dry pumping, lubricant free technology
eliminating the need for costly oil changes and disposal
Lighweight and compact
with a small footprint allowing flexibility of use
Ideal backing pump
for small turbomolecular pumps
Complies
with EN61010, EN1012, CSA/UL standards
Worldwide
115/230 V or 24 V options
IEC 60320 C14 connector
on a.c. pumps
